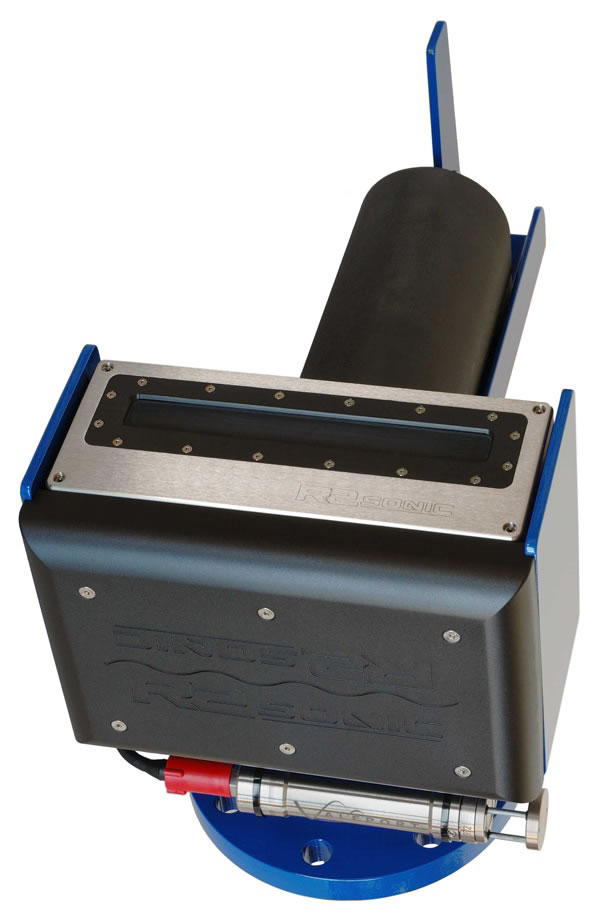

Features: • Ultra Compact • Focused 1° Beam Width • Selectable Frequencies 200-400kHz • Selectable Swath Sector 10° to 160° • System Range to 500m • Embedded Processor/Controller • Equiangular or Equidistant Beams • Roll Stabilization • Rotate Swath Secto |
||
Applications: • Hydrographic Survey • Offshore Site Survey • Pre & Post Dredge Survey • Defense & Security • Marine Research |
|||
| Systems Specification: |  |
||
Frequency |
200kHz-400kHz |
||
Beamwidth, across track |
1.0° |
||
Beamwidth, along track |
1.0° |
||
Number of beams |
256 |
||
Swath sector |
Up to 160° |
||
Max Range |
500m |
||
Pulse Length |
15µs-500µs |
||
Pulse Type |
Shaped CW |
||
Ping Rate |
Up to 60 Hz |
||
Depth rating |
100m |
||
Operating Temperature |
0°C to 50°C |
||
Storage Temperature |
-30°C to 55°C |
||
Electrical Interface:
|
|||
Mains |
90-260 VAC, 45-65Hz |
||
Power consumption |
35W |
||
Uplink/Downlink: |
10/100/1000Base-T Ethernet |
||
Data interface |
10/100/1000Base-T Ethernet |
||
Sync In, Sync out |
TTL |
||
GPS |
1PPS, RS-232 |
||
Auxiliary Sensors |
RS-232 |
||
Deck cable length |
15m |
||

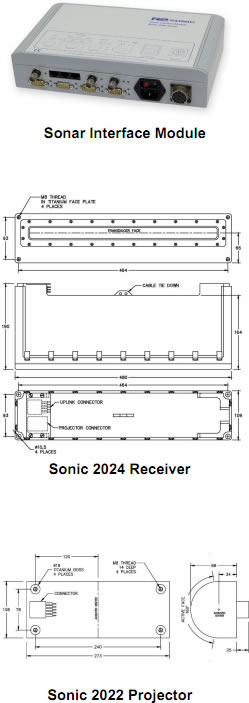

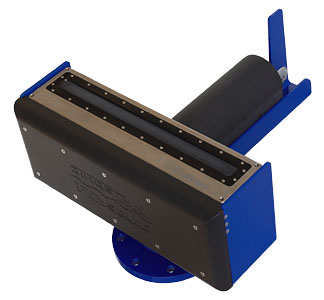

Mechanical: |
|||
Receiver Dim (LWD) |
276x109x190mm |
||
Receiver Mass |
7kg |
||
Projector Dim (LWD) |
273x108x86mm |
||
Projector Mass |
3.3kg |
||
Sonar Interface Module Dim (LWH) |
280x170x60mm |
||
Sonar Interface Module Mass |
2.4k |
||
Sonar Options: |
|||
Snippets Imagery Output |
|||
| Switchable Forward Looking Sonar Output | |||
| Mounting Frame & Hardware | |||
| Over-the-side Pole Mount | |||
| Sound Velocity Probe & Profiler | |||
| Extended Sonar Deck Cable, 25m or 50m | |||
| 3000m Depth Immersion Depth | |||
